Sep 6 In-Class Exercise Thread.

Hey Everyone,

Post your solutions to the Sep 6 In-Class Exercise here.

Best, Chris

Hey Everyone, Post your solutions to the Sep 6 In-Class Exercise here. Best, Chris

-- Sep 6 In-Class Exercise Thread

Current cost c = 3, so in next move c = 4.

f(number to be moved) = c + h, where c is cost and h is a heuristic function is the sum of distances of numbers to their desired positions (how messed up the board is).

f(2) = 4 + (1 + 2 + 3 + 1 + 2 + 1 + 1 + 2) = 17

f(4) = 4 + (1 + 1 + 3 + 0 + 2 + 1 + 1 + 2) = 15

f(5) = 4 + (1 + 1 + 3 + 1 + 1 + 1 + 1 + 2) = 15

f(6) = 4 + (1 + 1 + 3 + 1 + 2 + 2 + 1 + 2) = 17

It's a tie so either 4 or 5 will be the next move. We can choose the lesser of two as an arbitrary tie breaker.

Student: Zahra Amin

(Edited: 2017-09-06)

Current cost c = 3, so in next move c = 4. f(number to be moved) = c + h, where c is cost and h is a heuristic function is the sum of distances of numbers to their desired positions (how messed up the board is). f(2) = 4 + (1 + 2 + 3 + 1 + 2 + 1 + 1 + 2) = 17 f(4) = 4 + (1 + 1 + 3 + 0 + 2 + 1 + 1 + 2) = 15 f(5) = 4 + (1 + 1 + 3 + 1 + 1 + 1 + 1 + 2) = 15 f(6) = 4 + (1 + 1 + 3 + 1 + 2 + 2 + 1 + 2) = 17 It's a tie so either 4 or 5 will be the next move. We can choose the lesser of two as an arbitrary tie breaker. Student: Zahra Amin

-- Sep 6 In-Class Exercise Thread

  f(2) = c(2) + h(2) = 4 + 13 = 17
  f(4) = c(4) + h(4) = 4 + 11 = 15
  f(5) = c(5) + h(5) = 4 + 11 = 15
  f(6) = c(6) + h(6) = 4 + 13 = 17

(Edited: 2017-09-06)

f(2) = c(2) + h(2) = 4 + 13 = 17 f(4) = c(4) + h(4) = 4 + 11 = 15 f(5) = c(5) + h(5) = 4 + 11 = 15 f(6) = c(6) + h(6) = 4 + 13 = 17

-- Sep 6 In-Class Exercise Thread

C = 4

f(4) = 4+1+1+3+2+1+1+2 = 15

f(6) = 4+1+1+3+1+2+2+1+2 = 17

f(5) = 4 +1+1+3+1+1+1+1+2 = 15

f(2) = 4+1+2+3+1+2+1+1+2 = 17

It would pick to either move 4 or 5, but it would determine to move 4 because it was the first move to be calculated

(Edited: 2017-09-06)

C = 4 f(4) = 4+1+1+3+2+1+1+2 = 15 f(6) = 4+1+1+3+1+2+2+1+2 = 17 f(5) = 4 +1+1+3+1+1+1+1+2 = 15 f(2) = 4+1+2+3+1+2+1+1+2 = 17 It would pick to either move 4 or 5, but it would determine to move 4 because it was the first move to be calculated

-- Sep 6 In-Class Exercise Thread

f(n)=c(n)+h(n) In this problem, after 3 moves from the initial starting puzzle, the possible moves are:

	1. Move 2 to the center
		○ f= 4+(1+2+1+2+1+1+2+3)=17
	2. Move 6 to the center
		○ f= 4+(1+1+2+2+1+1+2+3)=17
	3. Move 4 to the center
		○ f= 4+(1+1+2+1+0+1+2+3)=15
	4. Move 5 to the center
		○ f= 4+(1+1+2+1+1+1+1+3)=15

Move 4 or 5 will get the same result, but since move 4 come up earlier than move 5, my algorithm will choose to move 4

(Edited: 2017-09-06)

f(n)=c(n)+h(n) In this problem, after 3 moves from the initial starting puzzle, the possible moves are: 1. Move 2 to the center ○ f= 4+(1+2+1+2+1+1+2+3)=17 2. Move 6 to the center ○ f= 4+(1+1+2+2+1+1+2+3)=17 3. Move 4 to the center ○ f= 4+(1+1+2+1+0+1+2+3)=15 4. Move 5 to the center ○ f= 4+(1+1+2+1+1+1+1+3)=15 Move 4 or 5 will get the same result, but since move 4 come up earlier than move 5, my algorithm will choose to move 4

-- Sep 6 In-Class Exercise Thread

f(n) = c(n) + h(n)

f(5) = 4 + (1 + 1 + 3 + 1 + 1 + 1 + 1 + 2) = 15
f(6) = 4 + (1 + 1 + 3 + 1 + 2 + 2 + 1 + 2) = 17
f(2) = 4 + (1 + 2 + 3 + 1 + 2 + 1 + 1 + 2) = 17
f(4) = 4 + (1 + 1 + 3 + 0 + 2 + 1 + 1 + 2) = 15

Student: Xin Yan

(Edited: 2017-09-06)

f(n) = c(n) + h(n) * f(5) = 4 + (1 + 1 + 3 + 1 + 1 + 1 + 1 + 2) = 15 * f(6) = 4 + (1 + 1 + 3 + 1 + 2 + 2 + 1 + 2) = 17 * f(2) = 4 + (1 + 2 + 3 + 1 + 2 + 1 + 1 + 2) = 17 * f(4) = 4 + (1 + 1 + 3 + 0 + 2 + 1 + 1 + 2) = 15 Student: Xin Yan

-- Sep 6 In-Class Exercise Thread

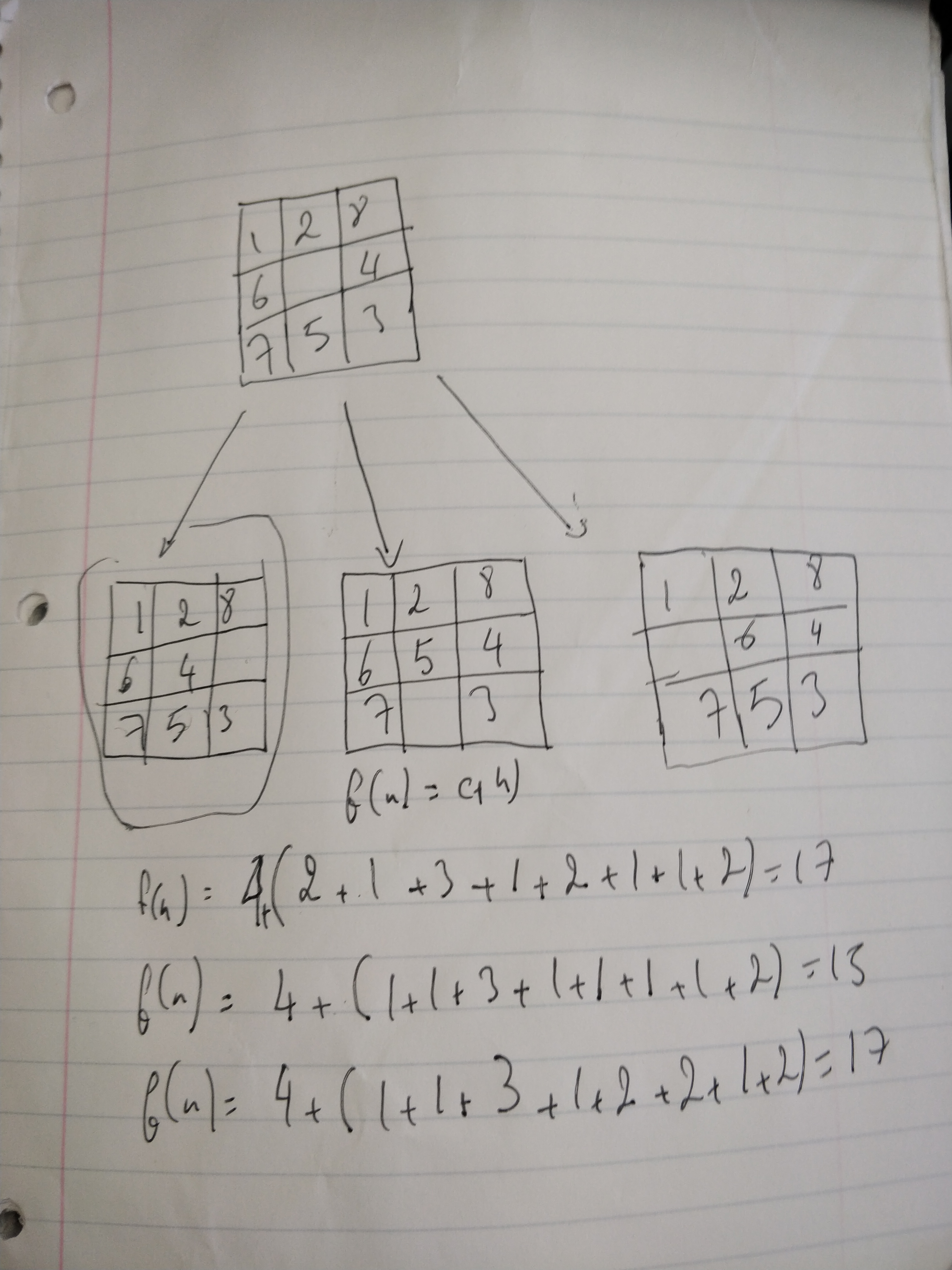

((resource:IMG_20170906_155634.jpg|Resource Description for IMG_20170906_155634.jpg))

-- Sep 6 In-Class Exercise Thread

Name : Yecheng Liang f(2) = 4 + (1+2+2+1+1+1+2+3) = 17 f(4) = 4 + (1+1+2+1+1+2+3) = 15 f(6) = 4 +(1+2+2+1+1+2+3) = 17 f(5) = 4 + (1+1+2+1+1+1+1+3) = 15

going for 4

Name : Yecheng Liang f(2) = 4 + (1+2+2+1+1+1+2+3) = 17 f(4) = 4 + (1+1+2+1+1+2+3) = 15 f(6) = 4 +(1+2+2+1+1+2+3) = 17 f(5) = 4 + (1+1+2+1+1+1+1+3) = 15 going for 4

-- Sep 6 In-Class Exercise Thread

Student Rodion Yaryy

f (2) = (3 + 1) + 1 + 1 + 2 + 1 + 1 + 1+ 1 + 2 +3 = 17 f (4) = (3 + 1) + 1 + 1 +3 + 2 + 1 + 1 +2 = 15 f (5) = (3 + 1) + 1+ 1 +3 + 1 + 1 +1 +1 + 2 = 15 f (6) = (3 + 1) + 1 + 1 + 3 + 1 + 2 +2 +1 + 2 =17

(Edited: 2017-09-06)

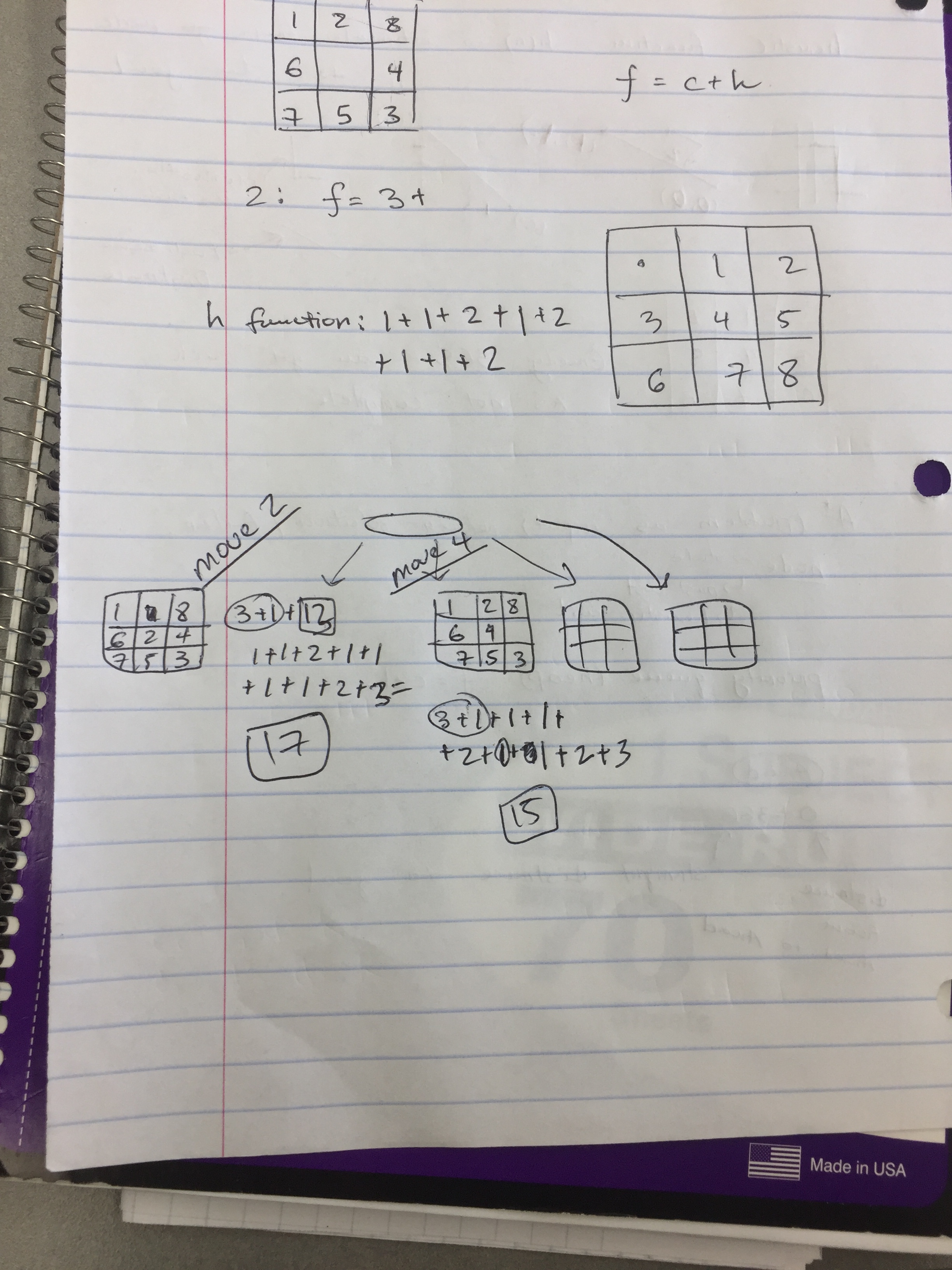

((resource:IMG_9661.JPG|Resource Description for IMG_9661.JPG)) Student Rodion Yaryy f (2) = (3 + 1) + 1 + 1 + 2 + 1 + 1 + 1+ 1 + 2 +3 = 17 f (4) = (3 + 1) + 1 + 1 +3 + 2 + 1 + 1 +2 = 15 f (5) = (3 + 1) + 1+ 1 +3 + 1 + 1 +1 +1 + 2 = 15 f (6) = (3 + 1) + 1 + 1 + 3 + 1 + 2 +2 +1 + 2 =17

-- Sep 6 In-Class Exercise Thread

 n = number to be moved
 f(n) = c(n) + h(n)

 f(2) = 4 + (1 + 2 + 3 + 1 + 2 + 1 + 1 + 2) = 17
 f(4) = 4 + (1 + 1 + 3 + 0 + 2 + 1 + 1 + 2) = 15
 f(5) = 4 + (1 + 1 + 3 + 1 + 1 + 1 + 1 + 2) = 15
 f(6) = 4 + (1 + 1 + 3 + 1 + 2 + 2 + 1 + 2) = 17

 The move to be chosen would be moving 4 to the center.

n = number to be moved f(n) = c(n) + h(n) f(2) = 4 + (1 + 2 + 3 + 1 + 2 + 1 + 1 + 2) = 17 f(4) = 4 + (1 + 1 + 3 + 0 + 2 + 1 + 1 + 2) = 15 f(5) = 4 + (1 + 1 + 3 + 1 + 1 + 1 + 1 + 2) = 15 f(6) = 4 + (1 + 1 + 3 + 1 + 2 + 2 + 1 + 2) = 17 The move to be chosen would be moving 4 to the center.
